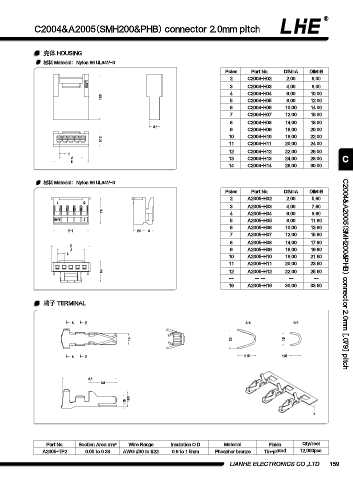

C2004&A2005(SMH200&PHB) connector 2.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C2004-H02 2.00 6.00
3 C2004-H03 4.00 8.00
4 C2004-H04 6.00 10.00
15.5 5 C2004-H05 8.00 12.00
6 C2004-H06 10.00 14.00
7 C2004-H07 12.00 16.00
8 C2004-H08 14.00 18.00
3.6
9 C2004-H09 16.00 20.00
10 C2004-H10 18.00 22.00
5.12
11 C2004-H11 20.00 24.00
12 C2004-H12 22.00 26.00
2
A 13 C2004-H13 24.00 28.00 C
B
14 C2004-H14 26.00 30.00

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2005-H02 2.00 5.60
3 A2005-H03 4.00 7.60
7.8
4 A2005-H04 6.00 9.60
5 A2005-H05 8.00 11.60
6 A2005-H06 10.00 13.60
B-1 2.9 3
7 A2005-H07 12.00 15.60
8 A2005-H08 14.00 17.60
B
A 9 A2005-H09 16.00 19.60
2
10 A2005-H10 18.00 21.60
11 A2005-H11 20.00 23.60
6.4 12 A2005-H12 22.00 25.60 C2004&A2005(SMH200&PHB) connector 2.0mm [.079] pitch
-- -- -- -- --
16 A2005-H16 30.00 33.60

端子 TERMINAL

A B A-A B-B

1.4 2.4 1.6

A B 2.15 1.35

6.5
3.3

1.85
1.25

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2005-TP2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
