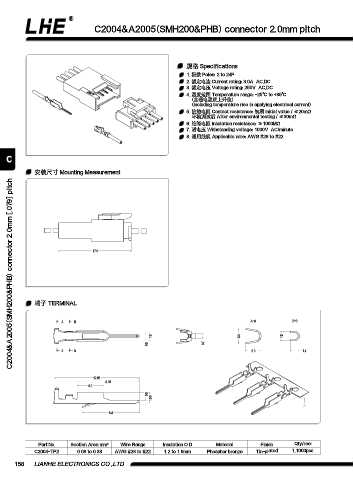

C2004&A2005(SMH200&PHB) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 24P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
8. 适用线规 Applicable wire: AWG #28 to #22

C

安装尺寸 Mounting Measurement
C2004&A2005(SMH200&PHB) connector 2.0mm [.079] pitch

17.3

端子 TERMINAL

A B A-A B-B

1.5 2.3 1.5
0.5 0.7
A B 2.3 1.4

12.55
9.15
3.9
0.5
1.65

8.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2004-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 1,1000pcs
