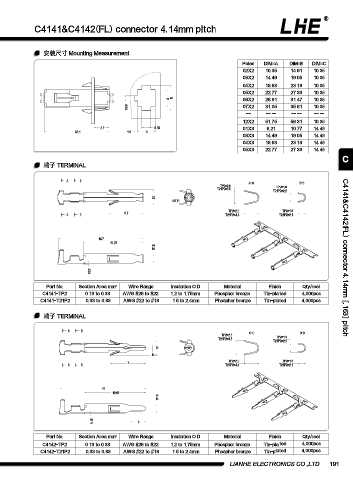

C4141&C4142(FL) connector 4.14mm pitch

安装尺寸 Mounting Measurement
Poles DIM=A DIM=B DIM=C
02X2 10.35 14.91 10.35
03X2 14.49 19.05 10.35
04X2 18.63 23.19 10.35
05X2 22.77 27.33 10.35
A B 06X2 26.91 31.47 10.35
3.35 07X2 31.05 35.61 10.35
-- -- -- -- -- -- --
12X2 51.75 56.31 10.35
8.8 5.35 01X3 6.21 10.77 14.49
38.1 1.6 C
03X3 14.49 19.05 14.49
04X3 18.63 23.19 14.49
05X3 22.77 27.33 14.49
C
端子 TERMINAL

A B
A-A B-B
TP2=2.8
T21P2=3.5 TP2=1.8
T21P2=2.2
3.1
n0.71
TP2=2.9 TP2=1.5
A B 6.7 T21P2=4.4 T21P2=2.1

16.7
11.75
1.8
Ø C4141&C4142(FL) connector 4.14mm [.163] pitch

0.25

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4141-TP2 0.13 to 0.33 AWG #26 to #22 1.2 to 1.75mm Phosphor bronze Tin-plated 4,000pcs
C4141-T21P2 0.33 to 0.83 AWG #22 to #18 1.5 to 2.4mm Phosphor bronze Tin-plated 4,000pcs

端子 TERMINAL

C D
TP2=2.8 C-C D-D
T21P2=3.5 TP2=1.8
T21P2=2.2
3.1
1
Ø
TP2=2.9 TP2=1.5
C D 7 T21P2=4.4 T21P2=2.1

17
12.05
1.8
Ø

0.25 3

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4142-TP2 0.13 to 0.33 AWG #26 to #22 1.2 to 1.75mm Phosphor bronze Tin-plated 4,000pcs
C4142-T21P2 0.33 to 0.83 AWG #22 to #18 1.5 to 2.4mm Phosphor bronze Tin-plated 4,000pcs
