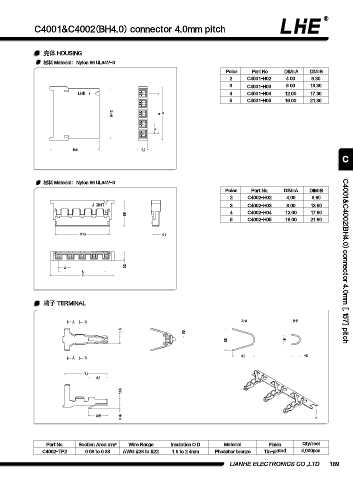

C4001&C4002(BH4.0) connector 4.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4001-H02 4.00 9.30
3 C4001-H03 8.00 13.30
4 C4001-H04 12.00 17.30
5 C4001-H05 16.00 21.30
B-1.2 A B

4

19.5 3.7
C

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B

2 C4002-H02 4.00 9.60
3 C4002-H03 8.00 13.60
4 C4002-H04 12.00 17.60
8.9
5 C4002-H05 16.00 21.60

B-3.2 2.2

3.2 C4001&C4002(BH4.0) connector 4.0mm [.157] pitch
4
A
B

端子 TERMINAL

A B A-A B-B
1.5 0.5
3.8 1.9

3.9 1.5
A B
7.4
3.3

1.55

3.25 0.45

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4002-TP2 0.08 to 0.33 AWG #28 to #22 1.6 to 2.4mm Phosphor bronze Tin-plated 4,000pcs
