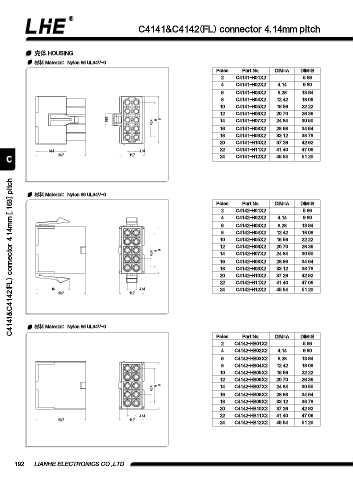

C4141&C4142(FL) connector 4.14mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4141-H01X2 5.66
4 C4141-H02X2 4.14 9.80
6 C4141-H03X2 8.28 13.94
8 C4141-H04X2 12.42 18.08
10 C4141-H05X2 16.56 22.22
12 C4141-H06X2 20.70 26.36
5.68 A B
4.14 14 C4141-H07X2 24.84 30.50
16 C4141-H08X2 28.98 34.64
18 C4141-H09X2 33.12 38.78
20 C4141-H10X2 37.26 42.92
14.4 4.14 22 C4141-H11X2 41.40 47.06
C 23.7 11.7 24 C4141-H12X2 45.54 51.20

C4141&C4142(FL) connector 4.14mm [.163] pitch
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4142-H01X2 5.66
4 C4142-H02X2 4.14 9.80
6 C4142-H03X2 8.28 13.94
8 C4142-H04X2 12.42 18.08
10 C4142-H05X2 16.56 22.22
12 C4142-H06X2 20.70 26.36
4.14 A B 14 C4142-H07X2 24.84 30.50
16 C4142-H08X2 28.98 34.64
18 C4142-H09X2 33.12 38.78
20 C4142-H10X2 37.26 42.92
22 C4142-H11X2 41.40 47.06
16 4.14 24 C4142-H12X2 45.54 51.20
23.7 11.7

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C4142-HB01X2 5.66
4 C4142-HB02X2 4.14 9.80
6 C4142-HB03X2 8.28 13.94
8 C4142-HB04X2 12.42 18.08
10 C4142-HB05X2 16.56 22.22
12 C4142-HB06X2 20.70 26.36
4.14 A B 14 C4142-HB07X2 24.84 30.50
16 C4142-HB08X2 28.98 34.64
18 C4142-HB09X2 33.12 38.78
20 C4142-HB10X2 37.26 42.92
4.14 22 C4142-HB11X2 41.40 47.06
23.7 11.7
24 C4142-HB12X2 45.54 51.20

192 LIANHE ELECTRONICS CO.,LTD.
